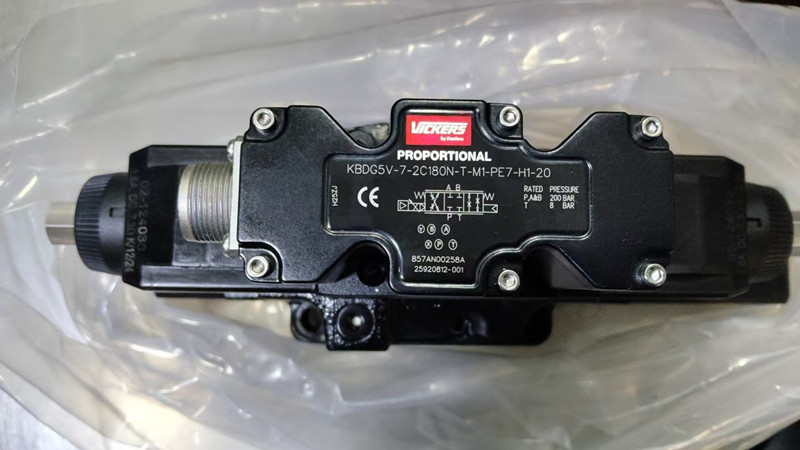

KBDG5V-7-2C180N-T-M1-PE7-H1-20 VICKERS VALVE
Date2026/02/05 10:39:58 Views： 16 次
- Brand：
- Model：
Products
KBDG5V-7-2C180N-X-T-M1-PE7-H1-20, KBDG5V72C180NXTM1PE7H120
857AN00255A
Model code: KBDG5V72C180NXTM1PE7H120
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| A Port flow LPM |
180.00
|
|
| A Port flow USGPM |
48.00
|
|
| Actuation Type | SOLENOID CONTR. PILOT OPERATED |
Solenoid controlled pilot operated
|
| B Port flow LPM |
180.00
|
|
| B Port flow USGPM |
48.00
|
|
| Brand | VICKERS BY DANFOSS |
Vickers by Danfoss
|
| Build orientation | STANDARD AS PER ANSI B93 9 |
Standard as per ANSI B93 9
|
| Build type | SPRING CENTERED |
Spring centered
|
| Coil voltage | 24 VOLT DC |
24 Volt DC
|
| Command input | +/- 10V CONTROL SIGNAL |
+/- 10V control signal
|
| Communication protocol | NONE |
None
|
| Design Series | 20 SERIES |
20 Series
|
| Electrical Connection | 7 PIN CONNECTOR WITH PLUG |
Electrical (PE7) 7 pin electrical plug with mating half
|
| Feedback sensor | NO |
No
|
| Fluid Cleanliness | 17/15/12 MICRON |
17/15/12 micron
|
| Fluid compatibility | ANTIWEAR HYDRAULIC OILS |
Antiwear hydraulic oils and non alkyl-based Phosphate Esters
|
| Interface | ISO4401-07/NFPA D07/CETOP 7 |
ISO4401-07/NFPA D07/CETOP 7/NG16
|
| Manual override | PLAIN |
Plain
|
| Maximum pressure BAR |
350
|
|
| Maximum pressure PSI |
5000
|
|
| Metering | METER IN / METER OUT |
Meter in / meter out
|
| Model Code 1 |
KBDG5V72C180NXTM1PE7H120
|
|
| On board electronics | YES |
Yes
|
| Performance | STANDARD |
Standard
|
| Pilot drain | INTERNAL |
Internal
|
| Pilot supply | INTERNAL |
Internal
|
| Product height in |
9.500
|
|
| Product height mm |
241.300
|
|
| Product length in |
11.690
|
|
| Product length mm |
296.926
|
|
| Product width in |
3.650
|
|
| Product width mm |
92.71
|
|
| ProFX compatible | NO |
No
|
| Reducer module | YES |
Yes
|
| Reverse flow check | NO |
No
|
| Seal type | VITON |
Viton
|
| Special features | NONE |
None
|
| Spool Type | ALL PORTS BLOCKED |
ISO4401-10/NFPA D10/CETOP 10/NG32
|
| Stage | TWO STAGE |
Two stage
|
| Symmetric flow | YES |
Yes
|
| Tank port rating BAR |
210
|
|
| Tank port rating PSI |
3000
|
|
| Valve Mount Type | SUBPLATE |
Subplate
|
| Valve type | PROPORTIONAL DIRECTIONAL |
Proportional directional
|
| Working temp max C |
70
|
|
| Working temp max F |
158
|
|
| Working temp min C |
-20
|
|
| Working temp min F |
-4
|
