Mounting Connection Forms
Screw type (pipe type): For simple hydraulic systems where the oil port is connected to the pipe by a screwed pipe fitting.
Screw type: Suitable for complex hydraulic systems where the valve can be removed without dismantling other components connected to it.
Stacked type: compact structure, low resistance loss, suitable for applications requiring compact design.
Flange type: suitable for large flow system with a diameter of 32 or more, high strength and reliable connection.
The basic requirements of hydraulic control valve
Sensitive action, reliable work, shock and vibration as small as possible.
When the valve port is fully open, the pressure loss when the oil through the valve port should be small.
Good sealing performance when the valve port is closed, no external leakage is allowed.
The controlled parameters (pressure or flow) are stable, and the amount of change is small when subjected to external interference.
The structure should be simple and compact, easy to install, debug and maintain, good generality.
Technical parameters
Main specifications

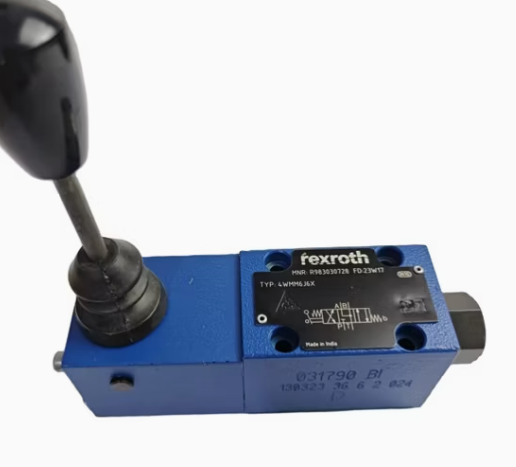

Model: 4WMM6J6X
Connection form: flange
Nominal diameter: 12mm
Material: stainless steel
Applicable medium: oil
Use: Cutoff
Application Scenario
The manual directional valve is suitable for a variety of industrial hydraulic systems, especially in the need to accurately control the direction of liquid flow in the application of outstanding performance. Its reliable performance and a variety of installation methods make it the preferred component of many hydraulic equipment.
